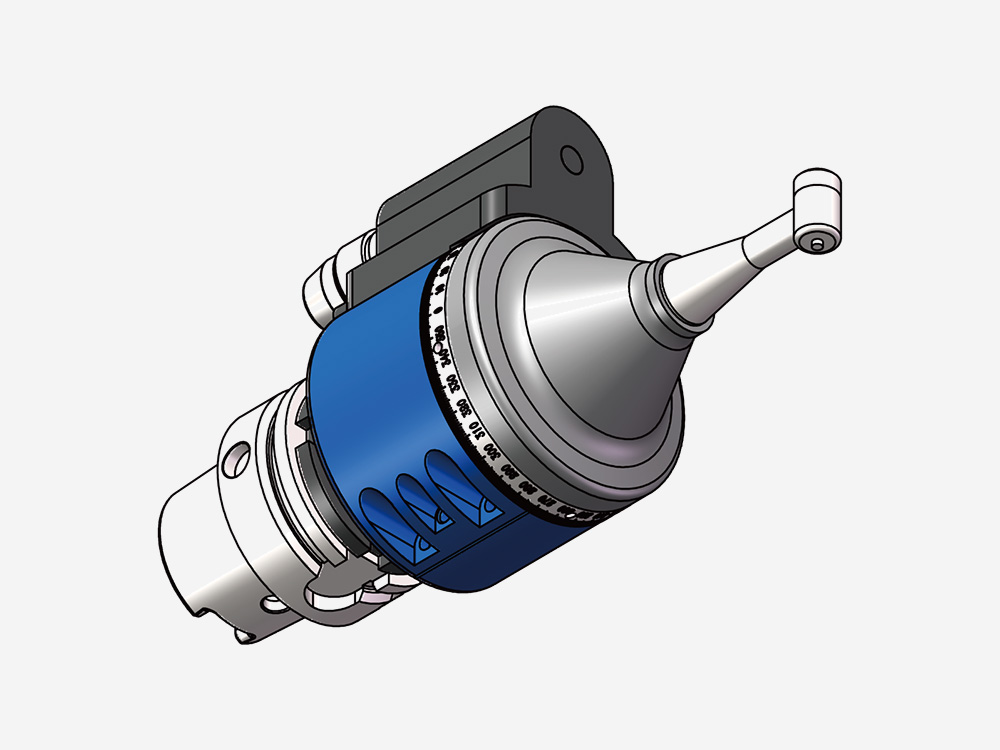

Right Angle Driven Tools are specialized tool holders designed to transfer the machine spindle’s rotational power at a 90-degree angle, enabling precise drilling, milling, and tapping operations in hard-to-reach positions on the workpiece. They are essential for machining side faces, radial holes, and complex geometries that cannot be easily processed with standard axial-driven tools. By integrating right angle driven tools into CNC lathes and machining centers, manufacturers can significantly expand the machine’s capability, perform multi-axis machining without repositioning the part, and reduce secondary setups. This results in higher productivity, improved precision, and greater machining flexibility in both high-volume production and small-batch custom jobs.
Our Right Angle Driven Tools are built with high-quality alloy steel bodies and feature hardened, precision-ground components for maximum rigidity, stability, and long-lasting durability. They are equipped with advanced bearing systems that ensure smooth and consistent transmission of torque, even under heavy cutting conditions. The compact angular design allows for optimized access to tight spaces, making them ideal for intricate part machining. Internal and external coolant supply options are integrated to improve chip evacuation and extend tool life, while the carefully engineered gear system minimizes noise and vibration, ensuring precise and stable cutting performance.
Available in multiple mounting interfaces, including VDI, BMT, HSK, BT, and PSC (Capto), our Right Angle Driven Tools are designed to meet the highest international standards of accuracy and compatibility. They come in various torque ratings, speed capacities, and size ranges to suit both high-speed machining and heavy-duty cutting applications. Every tool undergoes rigorous quality testing, including runout inspection and load capacity validation, to guarantee reliability and repeatability. Custom-designed versions can be provided to accommodate special machining requirements or unique machine setups, giving customers a tailored solution for their production needs.
When installing a Right Angle Driven Tool, ensure that the holder is securely mounted on the machine’s turret or spindle interface, following the torque specifications recommended by the manufacturer. Always confirm proper gear engagement and coolant connection before operation to prevent premature wear or tool failure. Routine maintenance, such as lubrication of gears and inspection of bearings and seals, is essential for maximizing the tool’s lifespan. Cutting parameters should be selected based on the material, tool size, and torque rating to achieve the best results. Safety precautions, including proper tool clamping and regular alignment checks, must always be observed during operation.
Right Angle Driven Tools are widely used across industries where complex, multi-surface machining is essential. In the automotive sector, they are ideal for producing transmission housings, engine blocks, and precision components. In aerospace, they are applied in machining structural parts and intricate geometries where accessibility is limited. In the medical industry, they are essential for creating precise implants and instruments. General engineering, mold and die manufacturing, and precision component production also rely on right angle driven tools to achieve superior part quality and efficient machining operations.
Our Right Angle Driven Tools are trusted by a broad range of customers, including OEMs, contract manufacturers, and job shops that demand versatility and reliability in their CNC machining operations. Large-scale production facilities benefit from reduced cycle times and minimized part handling, while smaller workshops gain flexibility to perform advanced machining tasks on standard equipment. System integrators and machine tool builders also choose our right angle driven tools for their compatibility, robust design, and consistent performance. Any customer seeking to enhance machining capability, improve efficiency, and achieve higher accuracy will find these tools to be a vital addition to their production equipment.
