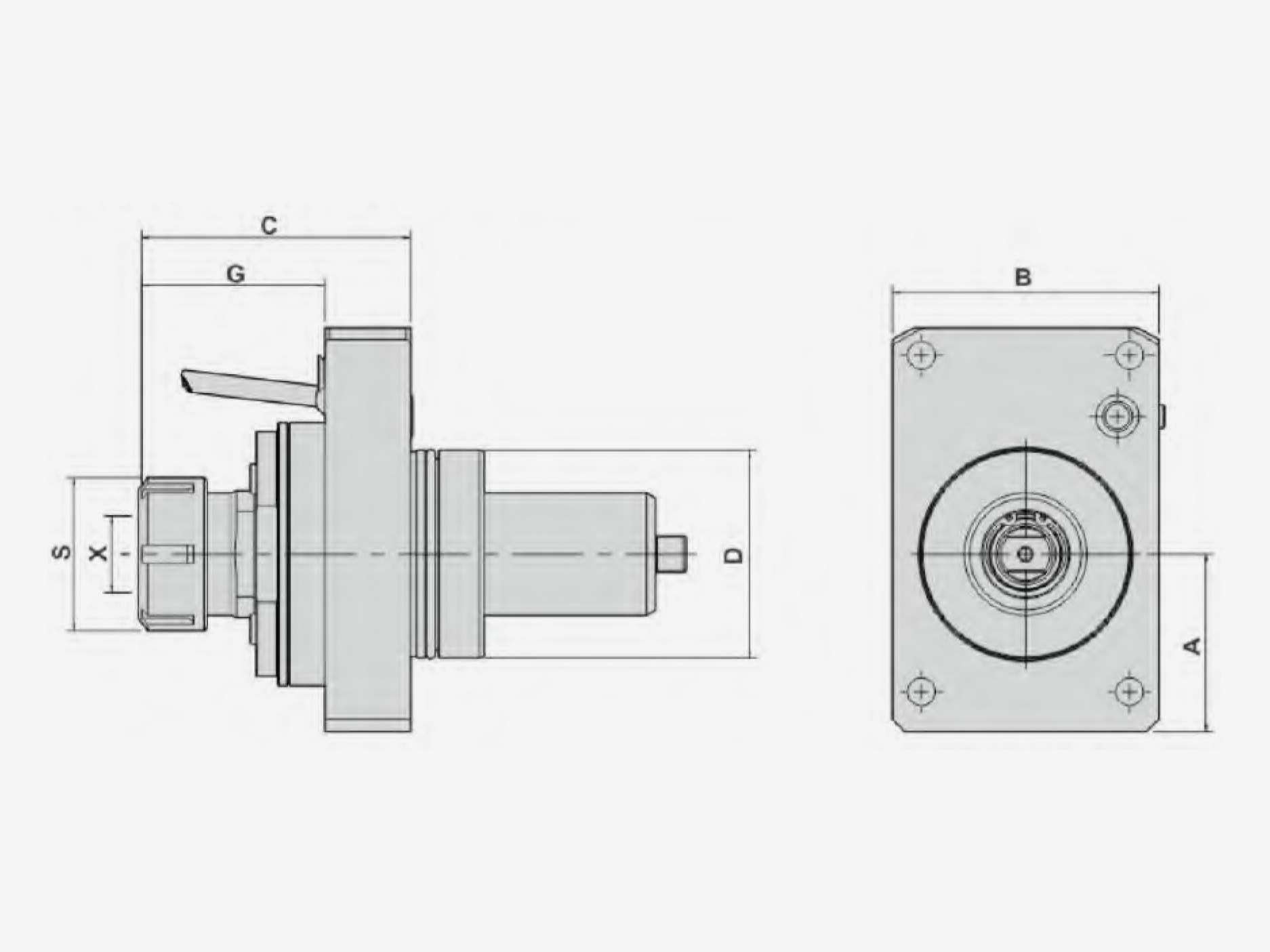

V TYPE MILLING AND DRILLING HEAD FOR MAIN SPINDLE

To be used for collet DIN 6499

External coolant supply

Collet is not included

The V Type Milling and Drilling Head is a high-performance angular attachment designed for CNC lathe main spindles, enabling combined milling and drilling operations without repositioning the workpiece. Compatible with collet DIN 6499, it delivers exceptional clamping rigidity and concentricity accuracy, making it ideal for multi-axis machining on Mazak and similar CNC turning centers. Engineered for external coolant supply, this drilling head effectively dissipates cutting heat, extends tool life, and maintains dimensional stability during high-speed operations. The V-type interface ensures precise angular positioning and robust torque transmission, minimizing vibration even under heavy cutting loads. Key technical features include high radial and axial runout accuracy (typically ≤0.005mm), compatibility with standard ER/collet chuck systems via DIN 6499, rigid body construction from hardened alloy steel for long-term durability, and optimized coolant channels for direct chip evacuation. Note: Collet is not included. Suitable for automotive components, precision mechanical parts, and complex multi-face machining in electronics and medical device manufacturing. This V type milling and drilling head significantly reduces cycle time and setup cost by consolidating milling and drilling into a single clamping operation.
