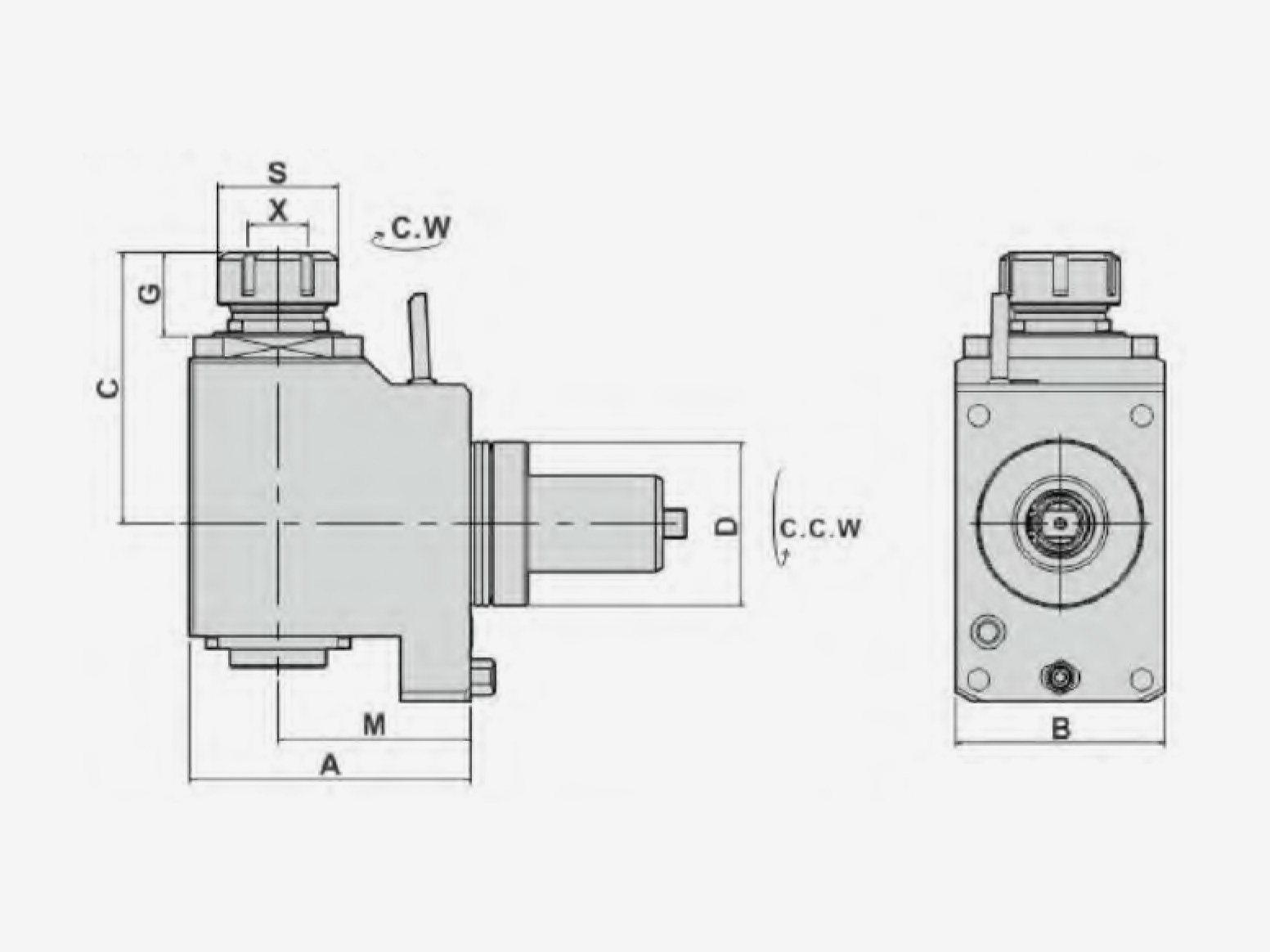

H TYPE MILLING AND DRILLING HEAD FOR MAIN SPINDLE

To be used for collet DIN 6499

External coolant supply

Collet is not included

The H Type Milling and Drilling Head is a high-precision angle head attachment engineered for CNC main spindles, enabling milling, drilling, and multi-directional machining without workpiece repositioning. Designed for compatibility with collet DIN 6499, it ensures secure, standardized tool clamping across a wide range of cutting tool diameters. External coolant supply design directs coolant precisely to the cutting zone, effectively reducing thermal buildup and extending tool life during high-speed operations. Note: collet is not included. Built for demanding machining environments including automotive, medical, and precision parts manufacturing, this head delivers exceptional rigidity and concentricity accuracy, minimizing vibration and runout. The H-type configuration provides a fixed angular output, making it ideal for off-center drilling and face milling tasks on complex workpieces. Its compact, robust housing is manufactured from high-strength alloy steel, ensuring durability under continuous cutting loads. Compatible with Mazak system tooling interfaces, the H Type Milling and Drilling Head integrates seamlessly into existing CNC setups. It is the preferred solution for manufacturers seeking to expand machining capability, improve cycle efficiency, and achieve tight dimensional tolerances on a single setup.
